PELICAN PRESSED STEEL DOORS WINDOW FRAMES are factory-made under strict supervision in our fully equipped industrial unit situated at Gurgaon. The frames are streamlined, elegant yet strong, robust, ready to install and are made in standard or special sizes to suit architectural or individual requirements. Frames are manufactured in accordance with the specification laid by the BIS,as per Is 4351.

Special Features

  • Manufactured from CRC Steel Sheet.

  • Recessed hinges by cutting machine slots in the frames.

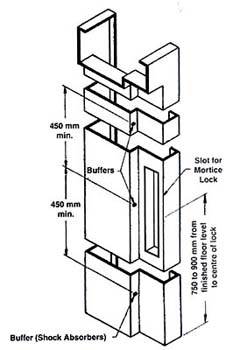

  • Provision for Mortice Locks(Flushed mortice lock strike arrangement)  sliding bolts, tower bolts  shock absorbers.

  • Special mortar guards for hinges, mortice lock slot, tower bolt   holes  sliding bolt holes to prevent concrete creeping in.

  • Double base tie of 1.25mm thick angle,to suit floor thickness25,30,35 or 45mm.

  • Available in single or double rebate (pattam).

  • Supplied with phosphating treatment  a coat of best quality metal primer.


Advantages

  • Economical : cheaper than wood

  • Unaffected by termite/white ants, hence more durable.

  • Stable: no warping, twisting, shrinkage and splitting. Unaffected changes in
       (temperature humidity) weather.

  • Hygienic: does not harbor or nourish mould and fungi unlike wood.

  • Elegant, sharp and neat finishes. It is easy to clean and maintain.

  • Easy installation, no carpenter nuisance, supplied in ready sizes.

  • Fire safe.

  • Backed by guarantee of best material and fine workmanship.

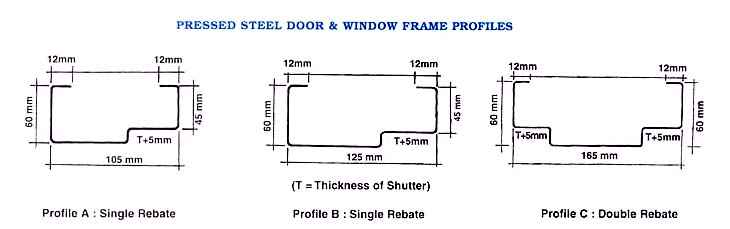

PELICAN PRESSED STEEL DOOR WINDOW FRAME PROFILES

 Please Click here for enlarged view

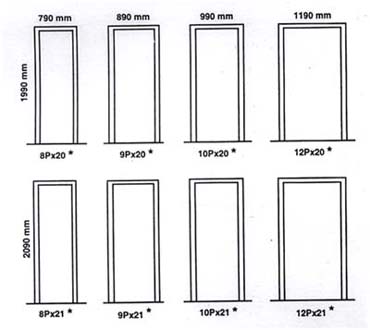

 TYPE & SIZES OF STANDARD PRESSED STEEL FRAMES
AS PER IS : 4351


 Please Click here for enlarged view


 Please Click here for enlarged view

 DETAILS WHILE ORDERING

PLEASE SPECIFY

  • Profiles of frames and sizes

  • Type of Lock

  • Finished total thickness of door shutter

  • For double-shutter doors, the position and details of type of bolt to be used

  • Mortar guard, if required , and

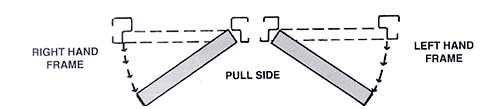

  • Left hand opening or right hand opening to enable engineers to make provision for hinges and locking arrangement accordingly. To prescribe so view the door from Pull Side. If the hinges are desired on the left, prescribe left (L) and if on the right prescribe Right (R)
